Automatic boilers

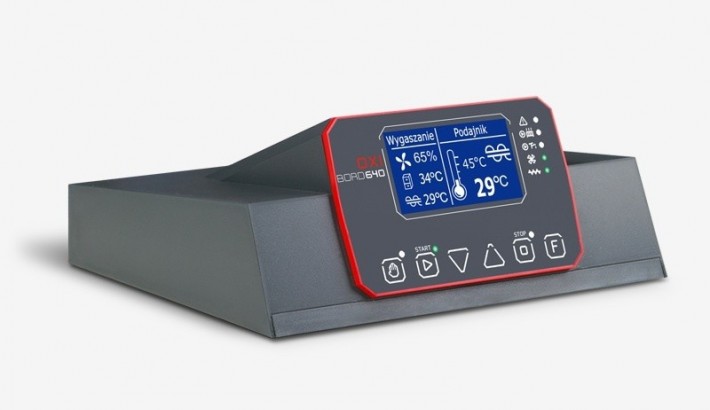

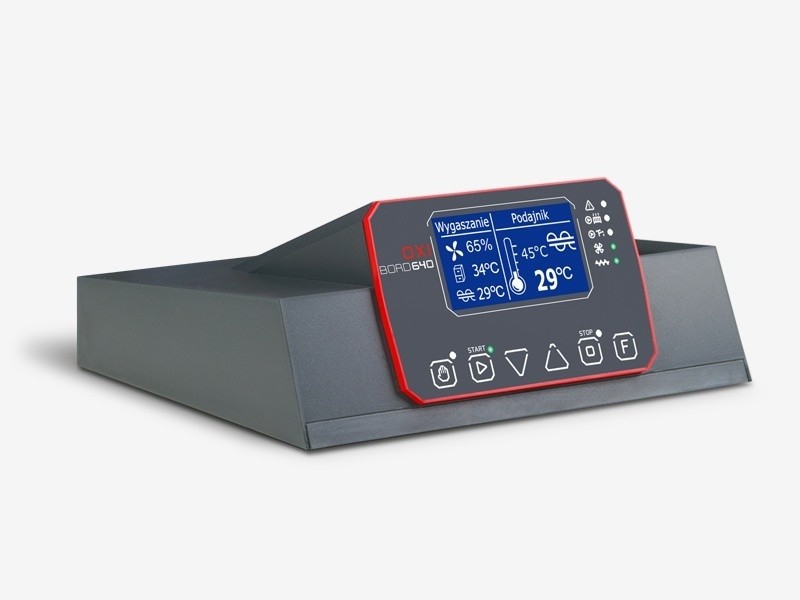

Oxi Bord 640

Simple and intuitive control of the combustion process

Controller OXI BORD 640 is design to control combustion process in boilers with piston and screw feeder.

Szczegóły

Funkcje

Schemat Instalacji

Instrukcja obsługi

Large LCD display is guarantee of easy and intuitive use.

Large LCD display is guarantee of simple and intuivite use. OXI BORD 640 is the simplest automatics to use automatic boilers which has outputs to handle boiler circulator, domestic hot water and radiator. Moreover it is equipped with function of controlig the level of remaining fuel and handling the grate furnace.

Worth noticed is the ablility to connect device to room's thermostat, remote pannel from BRAGER company and module to handle controller via Internet.

Main pros of contoller:

Large graphic LCD display
Handling of both piston and screw feeders
Handling of domestic hot water pump
Handling of boiler central heating pump
Handling of radiator
Smooth control of fan rotation
Handling of boilers room's thermostat

Handling of set-top-box security
Operated via Internet
Clear menu
Spring and winter mode of domestic hot water
Control of remaining fuel level
Various languages

Parameter	Value/Range
Soruce of power	230V/50Hz AC
Range of wetness	30 - 75%
Environment temperature	5 - 40°C
Outputs electicity load
Circulating pump	1A
Domestic hot water pump	1A
Feeder	3A
Supply fan	1A
Maximal temperature for temperature sensors	100°C
Electricity usage without additional devices	4,5W

Automatic boilers

Oxi Bord 640

Simple and intuitive control of the combustion process

Large LCD display is guarantee of easy and intuitive use.

Worth noticed is the ablility to connect device to room's thermostat, remote pannel from BRAGER company and module to handle controller via Internet.

Main pros of contoller:

Installation diagram

OXI BORD 640

Controller's work conditions

Downlaod manual

Manual OXI BORD 640

Data dodania: 15 czerwca 2018r,
