Top-loading boilers

Oxi Basic 210

Optimum solution for solid fuel boilers

Controller OXI BASIC 210 is the extended version of coltroller OXI Basic 110.

Szczegóły

Funkcje

Schemat Instalacji

Instrukcja obsługi

Ability of additional connection to domestic hot water pump.

Besides controlling fan and circulator pump, device is equipped in ability to connect with domestic hot water pump which can work in two modes: Winter and Summer.

Controller has a safety system to protect boiler from overheating and function of automatic turn off.

Key pros of controller:

Handling central heating pump
Handling domestic hot water pump
Handling fan
Stepless handlng of fan rotation speed
Automatic turn off

Handling of safety system STB
Innovative housing
Light-diodes signaling work of controller.
Simple, intuitive use
LED display

Parameter	Value/Range
Soruce of power	230V/50Hz AC
Range of wetness	30 - 75%
Environment temperature	5 - 40°C
Outputs electicity load
Circulating pump	1A
Domestic hot water pump	1A
Supply fan	1A
Maximal temperature for temperature sensors	100°C
Electricity usage without additional devices	1,5W

Top-loading boilers

Oxi Basic 210

Optimum solution for solid fuel boilers

Ability of additional connection to domestic hot water pump.

Controller has a safety system to protect boiler from overheating and function of automatic turn off.

Key pros of controller:

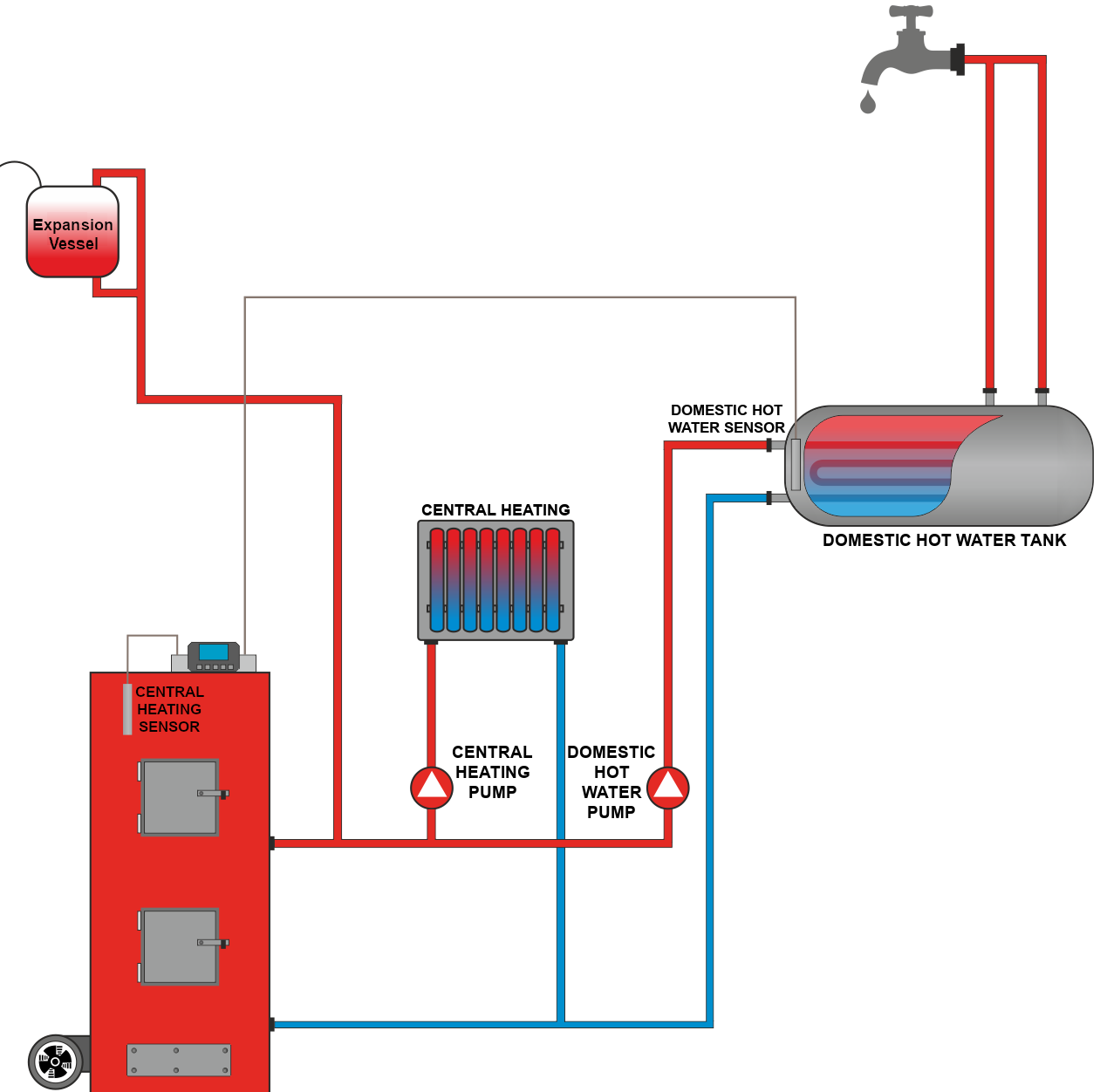

Installation diagram

OXI BASIC 210

Controller's work conditions

Download manual

Manual OXI BASIC 210

Data dodania: 15 czerwca 2018r.
