Top-loading boilers

Oxi Bord 260

Intuitive control of boilers operation

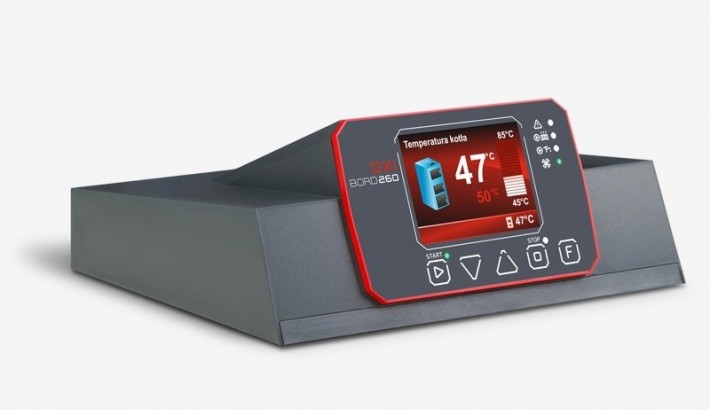

Temperature controller OXI BORD 260 is aimed to regulate operations of central heating charged boilers.

Szczegóły

Funkcje

Schemat Instalacji

Instrukcja obsługi

First in series equipped in large full coloured TFT display which provides notably simple and intuitive use

Device is steering fan rotation speed, central heating pump and domestic hot water pump. It has a few useful functions as: summer and winter mode, anty stop, protection from freezing and automatic turn boiler off.

Moreover device has various mode for varoius languages, ability to connect with room's thermostat, remote BRAGER pannel and Internet connection module.

Main pros of controller:

Large full colour TFT display
Handling central heating pump
Handling of domestic hot water pump
Handling fan
Stepless fan rotation control
Anty Stop function
Intuitive menu

Handling of boilers room's thermostat
Operated via Internet
Automatic boiler turn off
Handling of safety system STB
Innovative housing
Various languages
Simple, intuivite use

Parameter	Value/Range
Source of power	230V/50Hz AC
Range of wetness	30 - 75%
Environment temperature	5 - 40°C
Outputs electricity load:
Circulating pump	1A
Domestic hot water pump	1A
Feeder	3A
Supply fan	1A
Maximal temperature for temperature sensors	100°C
Electicity usage without additional devices	2,8W

Top-loading boilers

Oxi Bord 260

Intuitive control of boilers operation

First in series equipped in large full coloured TFT display which provides notably simple and intuitive use

Moreover device has various mode for varoius languages, ability to connect with room's thermostat, remote BRAGER pannel and Internet connection module.

Main pros of controller:

Installation diagram

OXI BORD 260

Controller's work conditions

Download manual

Manual OXI BORD 260
