Oxi Bord 740


Extended functions for highest level of control

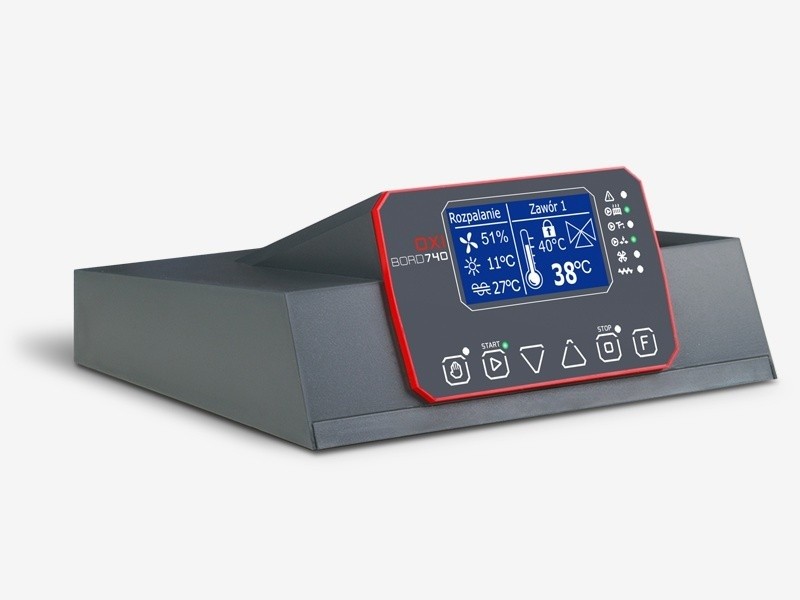

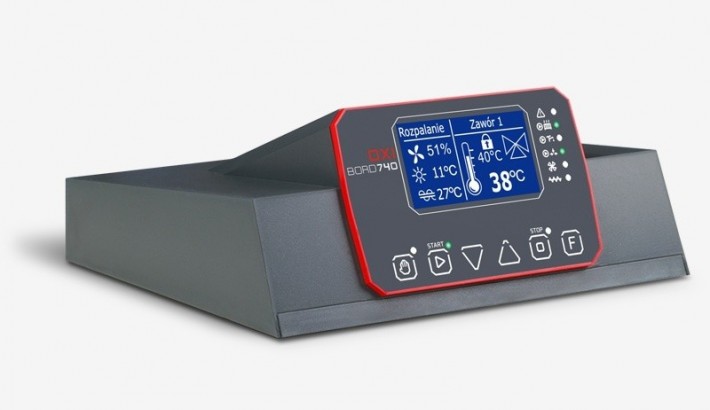

OXI BORD 740 is extended controller to handle heating system with automatic solid fuel-fired boiler.

Szczegóły
Funkcje

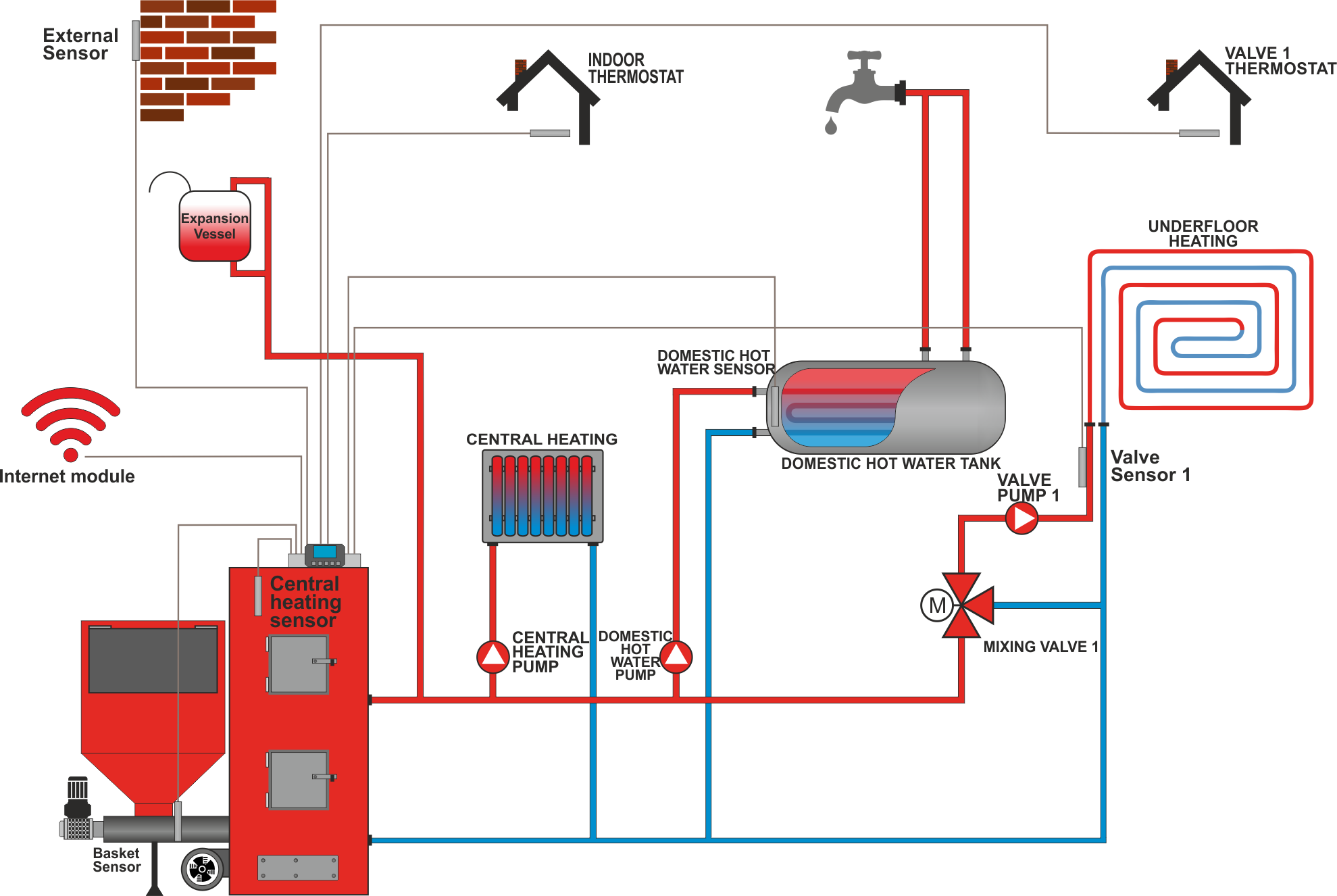

Schemat Instalacji
Instrukcja obsługi

OXI BORD 740 allows to handle both piston and screw feeder boilers

Large, clear LCD display guarantees simple and intuitive use.  Inteligent menu is devided for primary and installer mode makes everyday use easier. Device is handling feeder, central heating pump, domestic hot water pump, supply fan and aslo operate additional heating circuit equipped in mixing valve and valve pump. External temperature sensor which comes in package gives opportunity to work in weather mode thanks to defined heating programs. Device is aslo equipped in function of measurement the level of remaining fuel and ability to handle emergency crate.

Worth noticed is the ablility to connect device to room's thermostat, remote pannel from BRAGER company and module to handle controller via Internet.


Main pros of controller:

  • Large graphic LCD display
  • Handling of both piston and screw feeders
    • Handling of domestic hot water pump

    • Handling central heating pump
    • Handling fan
    • Stepless control of fan rotation
    • Handling valve pump
    • Handling actuator of mixing valve

    • Handling of valve indoor thermostat

    • Weather steering

    • External temperature sensor
    • Handling of boliers indoor thermostat
    • Handling of safety system STB
    • Operated via Internet
    • Clear menu
    • Summer and winter mode for domestic hot water
    • Measurement the level of remaining fuel
    • Various languages
    • Simple, intuitive use
    • Instalation mode
    • Ability to expand
