Remote control

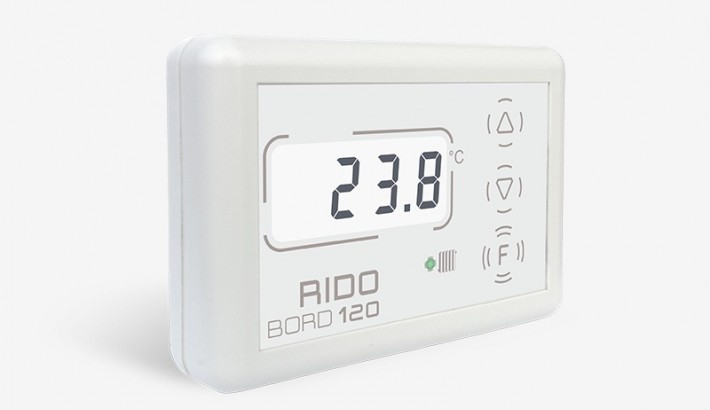

Rido Bord 120

Szczegóły

Instrukcja obsługi

Indoor thermostat destined to handle temperature inside the room by regulate work of circulating pump.

In addition it has function of remote pannel which gives opportunity to change temperatire of heating circuit. Thermostat has large LCD display and buttons made in capacitive technology.
Device is prepared to be mounted on wall without other source of power. Small dimensions and subdued colours makes it easy to siut it to accomodation spaces.

Thermostat RidoBord 120 co-operates with every BRAGER's automatics. Connection between controller on boiler and thermostat is provided by four-core cable.

Main pros of controller:

Ability to handle temperature of air indoor and heating circuit
Intuitive use
Ability to choose heating circuit
Pannel is powered straight from controller at boiler

Warrning of controller alerts
Large LCD display
Co-operation with every BRAGER's company controllers

Package include:
-Four wire cable for connection with controller (10m)

Controller's work condtions:

Parameter	Value/Range
Source of power	5,5 – 9 VDC
Range of wetness	30 - 75%
Environment temperature	5 - 40°C
Electricity usage without additional devices	2 W

Remote control

Rido Bord 120

Indoor thermostat destined to handle temperature inside the room by regulate work of circulating pump.

Thermostat RidoBord 120 co-operates with every BRAGER's automatics. Connection between controller on boiler and thermostat is provided by four-core cable.

Main pros of controller:

Package include:
-Four wire cable for connection with controller (10m)

Controller's work condtions:

Download manual

Manual Rido Bord 120

Data dodania: 15 czerwca 2018r.
