Automatic boilers

Oxi Bord 760

Precise control of extensive systems

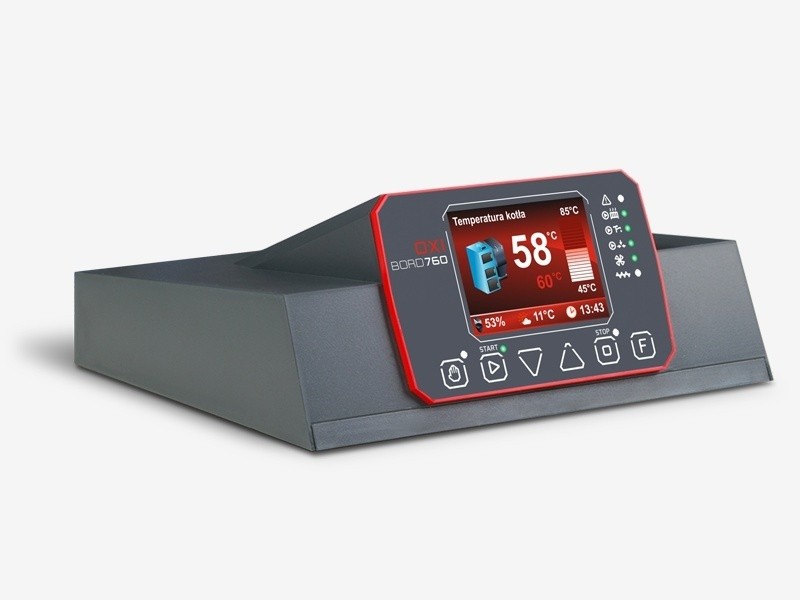

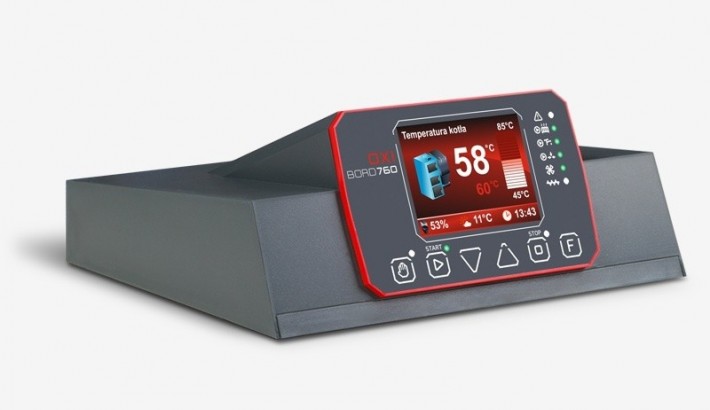

Boilers automatics OXI BORD 760 is advanced handling device to control boilers with automatic feeder systems

Szczegóły

Funkcje

Schemat Instalacji

Instrukcja obsługi

Controller stands off with it's design and clear colourful display combined with innovative interface. Togeather it setting new standards on the market of boilers fuel combustion controllers.

OXI BORD 760 in it's base version is able to control functions of extended heating system equipped in central heating pump, domestic hot water pump, complex module for mixing valve with valve pump and central heating pump.Automatics gives possibility to handle heating system in weather mode using heating curves and also in time mode which gives ability to set individual time setting for each handled modules. This device not only controls the work of the boiler and the system, but also ensures safety and convenience of operation with such functions as: protection against Legionella, remaining fuel amount control, anti-stop and anti-freeze protection.
This automatics is a part of whole BRAGER company systemwhich means that it's housing has ability to control four additional heating circuit equipped in mixing valves, valve pumps and external thermostats.

Moreover system can be extended by BRAGER's company remote pannels and internet connection module.

Main pros of controller:

Large colourful display TFT
Handling of both piston and screw feeders
Handling of domestic hot water pump
Handling central heating pump
Handling fan
Stepless control of fan rotation
Handling of up to five valve pumps
Handling of up to five actuators of mixing valves
Handling of up to five valves indoor thermostats
Universal voltage output
Handling of clock
Time zones
Protection against Legionella

Weather steering
External temperature sensor
Handling indoor boiler thermostat
Handling of safety system STB
Operated via Internet
Clear menu
Summer and winter mode for domestic hot water
Measurement the level of remaining fuel
Various languages
Simple, intuitive useProsta, intuicyjna obsługa
Ability to expand
Instalation mode

Parameter	Value/Range
Source of power	230V/50Hz AC
Range of wetness	30 - 75%
Environment temperature	5 - 40°C
Outputs electicity load:
Circulating pump	1A
Domestic hot water pump	1A
Feeder	3A
Supply fan	1A
Actuator valve	2x1A
Maximal temperature for temperature sensors	100°C
Electicity usage without additional devices	4,5W

Automatic boilers

Oxi Bord 760

Precise control of extensive systems

Controller stands off with it's design and clear colourful display combined with innovative interface. Togeather it setting new standards on the market of boilers fuel combustion controllers.

Moreover system can be extended by BRAGER's company remote pannels and internet connection module.

Main pros of controller:

Installation diagram

OXI BORD 760

Controller's work conditions

Download manual

Manual OXI BORD 760
