Top-loading boilers

Oxi Bord 360

For extremely extensive systems

Heating automatics OXI BORD 360 is extended device dedicated to control process of combustion in solid fuel charged boilers.

Szczegóły

Funkcje

Schemat Instalacji

Instrukcja obsługi

OXI BORD 360 has impressive abiliteis to expand . It guarantess handling of extremely extensive heating systems.

Device is able to handle up to 5 valve modules(pump + actuator of mixing valve + thermostat valve). It has large TFT display, intuitive menu and several functions defining work of heating system. Interface is equipped in inteligent menu, instalation mode and various languages.

Whole system can be expanded by external indoor thermostats for each of heating circuit. Remote BRAGER company pannels and internet connection module.

Main pros of controller:

Large full coloured TFT display
Handling circulating pump
Handling of domestic hot water pump
Handling fan
Stepless fan rotation steering
Handlig up to 5 valves pumps
Steering up to 5 mixing valves
Handling up to 5 thermostat valves
Weather steering
External weather sensor
Anti Stop function

Indoor thermostat
Clear menu
Operated via Internet
Automatic boiler turn off
Operated with STB safety system
Innovative housing
Various languages
Simple, intuitive use
Ability to expand
Instatlation mode

Parameter	Value/Range
Soruce of power	230V/50Hz AC
Range of wetness	30 - 75%
Environment temperature	5 - 40°C
Outputs electicity load
Circulating pump	1A
Domestic hot water pump	1A
Valve pump	1A
Supply fan	1A
Actuator valve	1A
Maximal temperature for temperature sensors	100°C
Electricity usage without additional devices	4,5W

Top-loading boilers

Oxi Bord 360

For extremely extensive systems

OXI BORD 360 has impressive abiliteis to expand . It guarantess handling of extremely extensive heating systems.

Whole system can be expanded by external indoor thermostats for each of heating circuit. Remote BRAGER company pannels and internet connection module.

Main pros of controller:

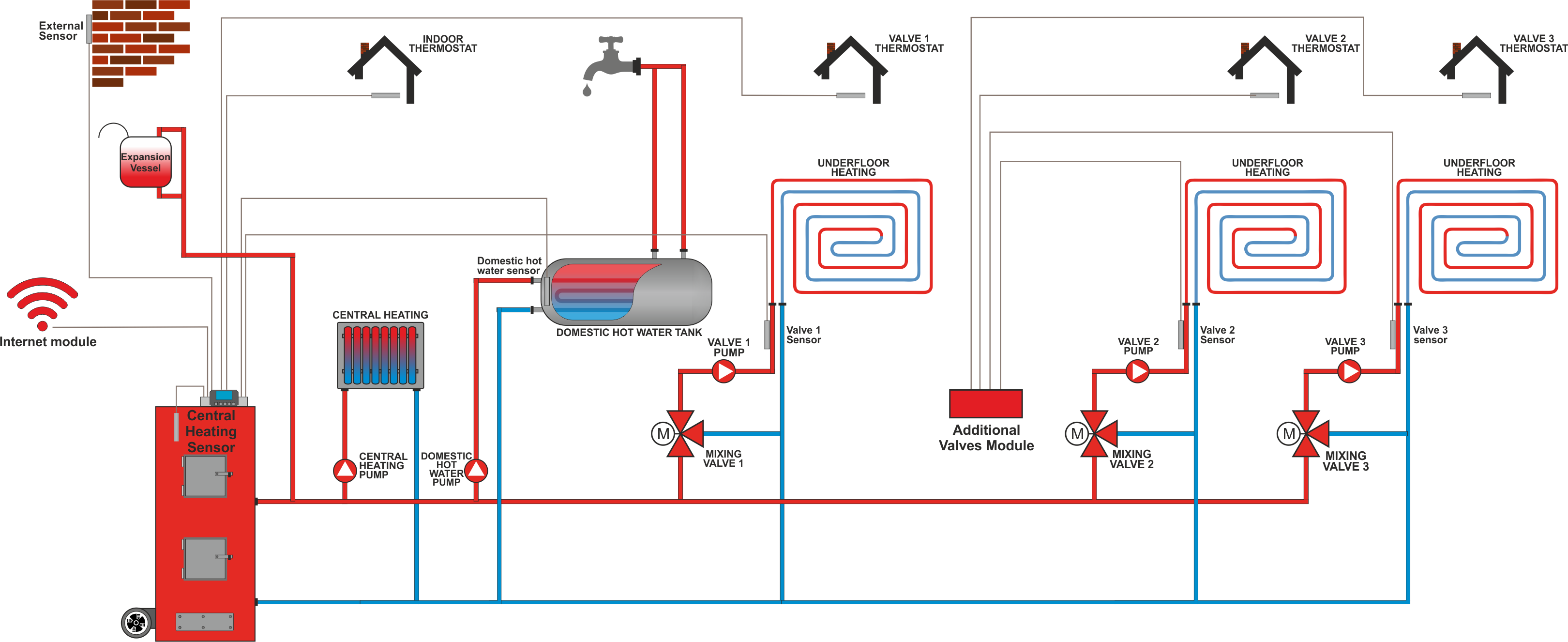

Installation diagram

OXI BORD 360

Controller's work conditions

Download manual

Manual OXI BORD 360

Data dodania: 15 czerwca 2018r.
